 KM-600 ( Ultrasound Stimulator) |
| Ultrasound Therapy |
 |
|
| - |

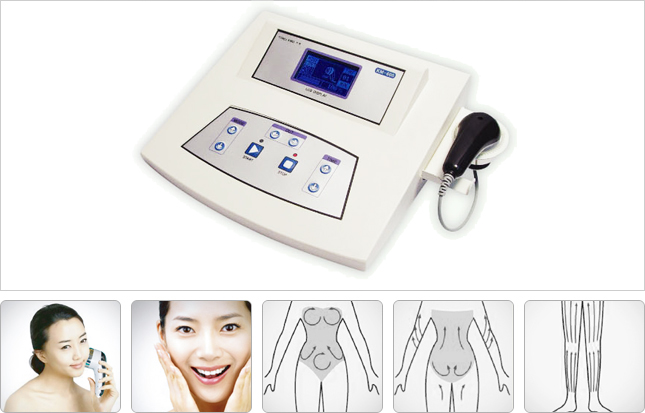

This Ultrasound Stimulator is used to provide diathermic treatment by applying 1MHz and 3MHz ultrasonic energy to the ultrasound head. It is used to relieve pain and stimulate the skin. It consists of a button to set up each function, an LCD display showing the operation status of the control panel, and an ultrasound head. In addition, it contains functional circuits for a timer and three modes (Continuous, Vibration, and Beat) as well as the signal-generating part. |
| - |
When power is supplied to the equipment through an external power source (DC 18V), high-frequency current is generated through the frequency generation part. When high-frequency current that is generated is amplified and transferred to the ultrasound vibrator, ultrasound is generated by the vibrator.
① Continuous mode (CONT) 1MHz and 3MHz are outputted continuously.
② Vibration (MOD1) 1MHz and 3MHz are outputted by turning ON for 35msec and OFF for 35msec.
③ Beat mode (MOD2) 1MHz and 3MHz are outputted by turning ON for 0.5 sec and OFF for 0.5 sec. |
|
|
|
| - |
Rated Power: 100~240V ~50/60Hz 1.7A |
| - |
Power Consumption: Max. of 50[W] |
| - |
Ultrasonic Frequency: 1MHz, 3MHz |
| - |
Classification according to the protection format and degree of protection against electric shock: 1st Class Instrument (Instrument with Internal Power Source), BF-Type Instrument |
| - |
Safety Equipment
① Countermeasure established for excessive current due to product disorder (SMPS)
② Forced suspension following increase in internal temperature due to excessive use (Normal operation is possible by turning off power and then turning it on again a little later.) |
|
|
|
|
